PRODUCT PARAMETERS

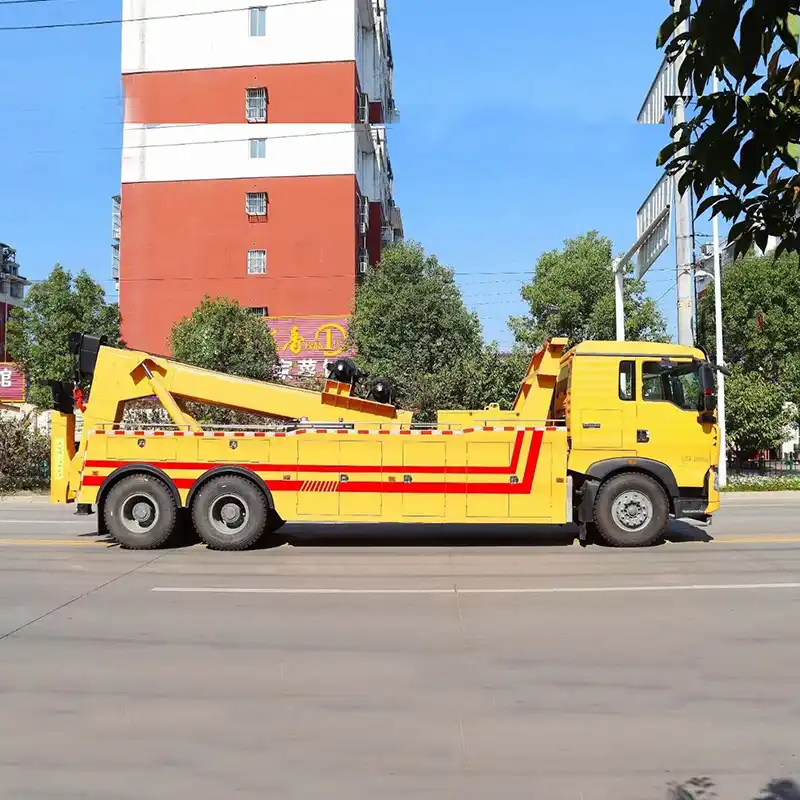

20T Heavy Towing Truck HOWO
| project | Descriptions | Specifications | |
| Basic | Overall dimensions(mm) | 10580×2550×3120 | |
| curb weight(Kg) | 21000 | ||
| Total mass(Kg) | 25000 | ||
| Body | Maximum towing capacity（kg） | 33000 | |
| Rear lift system | Max. lifting capacity（kg） | 25000 | |
| Maximum lifting capacity when fully extended (kg) | 8800 | ||
| Crane system | Maximum lifting capacity (kg) | 20000 | |
| Maximum lifting height (mm) | 6700 | ||
| Chassis
|
Chassis brand | HOWO | |
| Drive form | 6×4 | ||
| Steering wheel | Left hand drive | ||
| Engine brand and model | Sinotruk/MC07H.35-60 | ||
| Max engine power(Kw) | 257 | ||
| Engine emission standard | Euro 5 | ||
| Gearbox | HOWO10-speed manual | ||
VEHICLE ADVANTAGES
TOWING CAPACITY FOR ALLTONNAGES
1. Main and auxiliary telescopic arms: They do not deform or bend underheavy loads. With a multi -section telescopic design, they have a wider operating radius, capable of handling situations such as heavy – vehicle roll-overs, fallinginto ditches, and long-distance towing. They can providedirect support.
2. High – load – bearing rear support arm: lt is integrally forged with in-creased thickness and width. lt supports multi – gear telescoping and multi-angle flipping (0 -90°), and is suitable for heavy – duty vehicles with differ-ent wheelbases and various fault postures (wheel – locked, rolled – over,axle – broken).it can realize the overall vehicle lifting and transportation.
3. Large – tonnage hydraulic winch: High -strength wear -resistant steel -core ropes are selected. lt comes with a brake self – locking and slow – low-ering function. it does not slip or roll backward during heavy- load towing,and is suitable for extreme working conditions ofemergency towing ofheavy – duty vehicles.
CORE OF SAFETY SUPPORT
1.Heavy – duty special chassis
2. Front and rear hydraulic outriggers
3. Strong – support hydraulic front outrigger
4. Strong-support hydraulic rear outrigger
CORE HYDRAULIC SYSTEM
1. Large – capacity hydraulic oil tank
2. High – pressure sealed pipeline
3. High – pressure multi – way reversing valve
4. Hydraulic cylinder with large bore diameter
5. Hydraulic cylinder of rear support arm
6. Hydraulic rotary motor
SPECIAL -PURPOSE TOOLS
PRODUCTIONPROCESS
1.Structural components are treated with electrophoretic painting.
2. The carriage, main and auxiliary arms are pre – assembled after elec trophoresis.
3. The carriage, main and auxiliary arms are assembled after bakingpaint.
4.install accessories and control details.
5.The overall assembly ofthe vehicle is completed
APPLICATION SCENARIOS
PACKAGING ANDTRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
