PRODUCT PARAMETERS

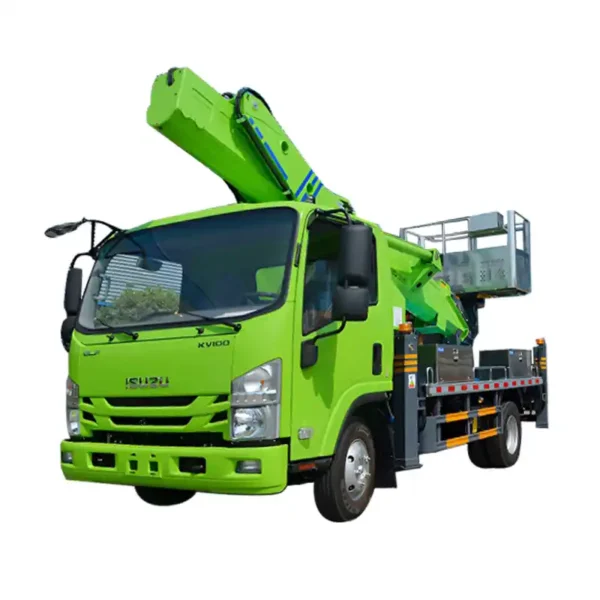

30m Aerial Lift Truck ISUZU
| project | Descriptions | Specifications |
| General | Overall dimensions(mm) | 5998*2090*3100 |
| curb weight(Kg) | 4365 | |
| Total mass(Kg) | 4495 | |
| Body | Maximum operating height (m) | 31 |
| Maximum operating range(m) | 14 | |
| Rotation angle | 360° | |
| Work bucket size（mm） | 1600X700X1000 | |
| Work bucket Material | High-strength stainless steel | |
| Work bucket load（kg） | 200 | |
| Chassis
|
Chassis brand | Isuzu |
| Driver form | 4*2 | |
| Steering wheel | Left hand drive | |
| Engine brand and model | Isuzu 4KH1CN6LB | |
| Horsepower(HP) | 120 | |
| Gearbox | 5-speed transmission |
VEHICLE ADVANTAGES
EXCELLENT SAFETY CONFIGURATIONS
1. Dual hydraulic lifting cylinders: The two cylinders are symmetricallystressed, which can avoid structural deformation caused by unilateral eccen-tric load and reduce platform shaking.
2. Balance valve: lt can maintain the load, control the speed, and preventload loss and dropping.
3. Pentagonal structure: lt achieves a balance between high strength andlight weight.
4. Hydraulic oil tank: lt functions to store oil, dissipate heat, precipitate impu-rities and separate air.
5. Radiator: lt prevents the oil temperature from being too high, avoids defor-mation and damage of key components, and improves the stability, accuracyand efficiency of operation.
STABLE CHASSIS DESIGN
1.Chassis outriggers: They provide stable support, enhance the load – bearingcapacity, and adapt to complex terrains.ICk
2. Outrigger level gauge: lt accurately measures the levelness of the outrig-gers, ensuring the equipment remains in a stable state during operation.
SIMPLE TO OPERATE
User – friendly control panel(touch screen/joystick), with a short trainingcycle and simple operation.
USER-FRIENDLY DESIGN
1.Operating seat
2.Outdoor heating chamber
3. Buffer wheels under the arm
4. Hooks under the arm
MULTIPLE PROTECTION DEVICES
1. 360 – degree turntable fault alarm
2.Emergency stop button
3.Guardrail for working at heightsA
4. Safety belt for working at heights
OTHER DETAILS
1.Hydraulic pipe wrapping
2.Outrigger warninglights
3. Wind speed detector
4.304 stainless-steel toolbox5.Winch
PRODUCTION PROCESS
1. Telescopic boom welding
2. Jib welding
3. Auxiliary beam welding
4. install the chassis on the auxiliary beam frame
5.Install the bottom plate on the base
6.Install the working arm on the chassis
7.install the work basket and other accessoriesANc
8.Completion of the vehicle superstructure installation
APPLICATION SCENARIOS
PACKAGING AND TRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
