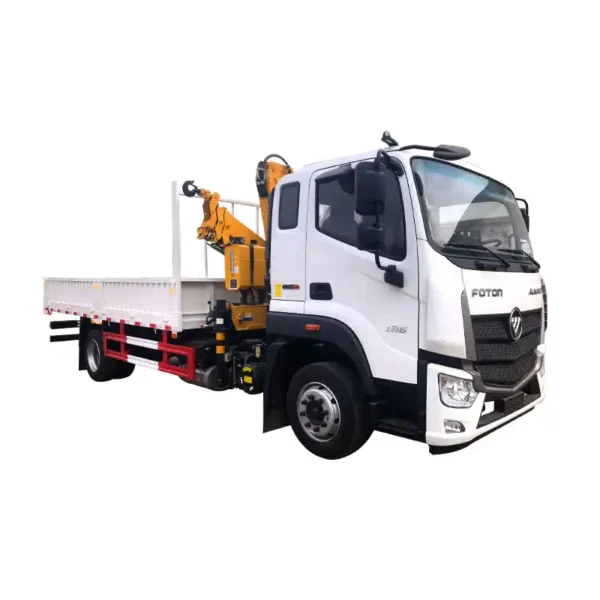

4-Ton Knuckle Boom Crane FOTON
PRODUCT PARAMETERS
4-Ton Knuckle Boom Crane FOTON
| project | Descriptions | Specifications |
| Basic | Overall dimensions(mm) | 9000×2500×3750 |
| curb weight(Kg) | 12080 | |
| Loading capacity(Kg) | 5790 | |
| Total mass(Kg) | 18000 | |
| Body | Cargo box size（mm） | 6100x2400x550 |
| Maximum lifting weight (kg) | 5000 | |
| Working radius (m) | 7.1 | |
| Lifting height (m) | 8 | |
| Chassis
|
Chassis brand | FOTON |
| Drive form | 4*2 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 5150 | |
| Engine brand and model | ISF4.5 210 | |
| Max engine power(Kw) | 154/210HP | |
| Gearbox | 8JS85T,8speed forward 2 reverse |
