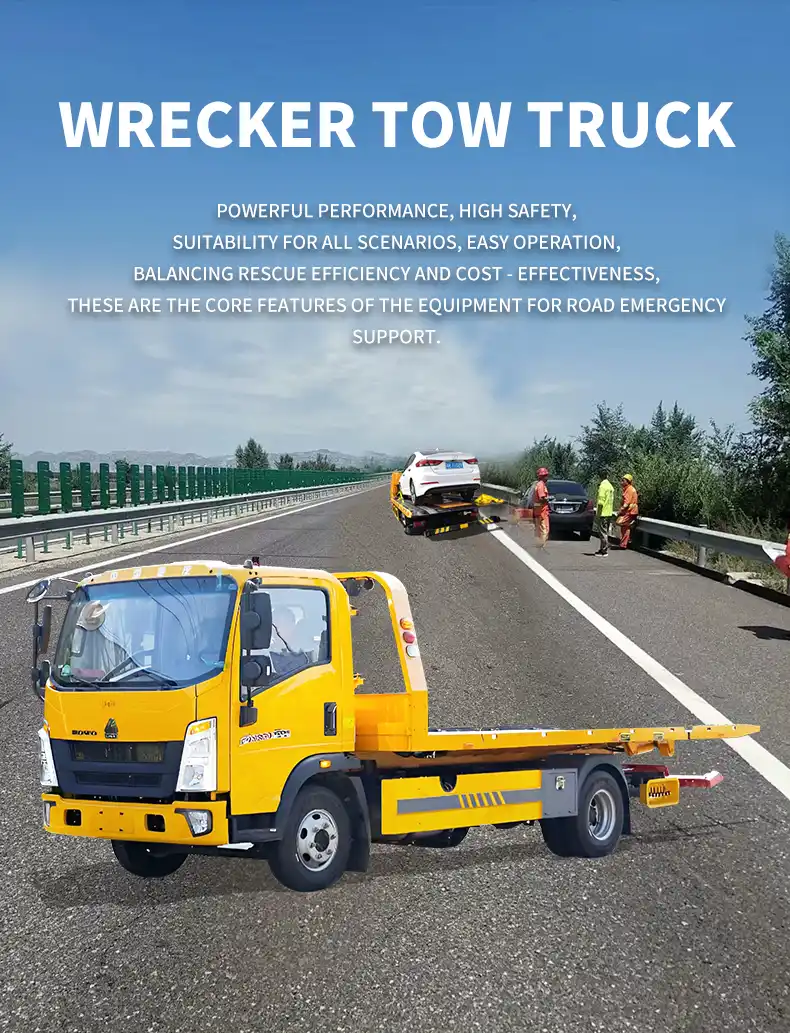

4T Tow truck Sinotruk
PRODUCT PARAMETERS
4T Tow truck Sinotruk
| project | Descriptions | Specifications |
| General | Overall dimensions(mm) | 5995×2300×2380 |
| curb weight(Kg) | 2865 | |
| Total mass(Kg) | 6975 | |
| Body | Flat-bed dimensions(mm) | 5600×2300 |
| flat-bed Material | Q235 | |
| Thickness of pattern plate(mm) | 4 | |
| Max flat-bed load(Kg) | 4000 | |
| Max lifting capacity(Kg) | 3000 | |
| Winch pulling capacity(Kg) | 4000 | |
| Chassis
|
Chassis brand | Sinotruk HOWO |
| Driver form | 4×2 | |
| Steering wheel | Right-hand drive | |
| Engine brand and model | Yunnei YN4102QBZL | |
| Max engine power(Kw) | 85 | |
| Engine emission standard | Euro 3 | |
| Gearbox | 6-speed gearbox |
VEHICLE ADVANTAGES
POWERFUL TOWING CONFIGURATION
1. Steel wire fixing structure
2. Hydraulic winch
3.Steel wire pulley
4. Steel wire idler wheel
5. Main hook
6. Rear tow arm
HYDRAULIC SYSTEM
1. Hydraulic oil pump: Resistant to impact and high pressure, it has a stablepower output and can quickly respond to the action commands of the winchand tow arm, avoiding operationaljams.
2. Hydraulic oil tank: Equipped with an internal filter screen and oil suctionfilter element to preventimpurities from entering the oil circuit.
3. Hydraulic cylinder: lt has excellent sealing performance, is wear – resis-tant and corrosion – resistant, can withstand the high pressure and impactforce during operation, and ensures smooth and precise lifting and towingactions.
TRUG
4. Hydraulic oil pipe: High – pressure steel – wire braided rubber hoses areused, and some outer layers are equipped with protective sleeves to en-hance durability.
5.High – quality multi -way valve: The operation is smooth withoutjam-ming, and it can achieve fine – control adjustment of actions. lt has excellentsealing performance, is resistant to high pressure and wear – resistant, andR0has a long service life.
POWERFUL POWER
1.Full – power power take – off: lt offers more sufficient power output, hasprecise linkage with the hydraulic system, is convenient to operate and hasa low failure rate.
2. High -horsepower engine: its high torque provides an ample power foun-dation for the power take off and the hydraulic system, enabling morepowerful towing and lifting.
DIVERSITY OF FLAT PLATE STRUCTURES
1. Full – landing flat – bed tow truck: The flat bed can fully land on theground. When rescuing vehicles with a low chassis, it reduces the difficultyfor the vehicle to get onto the flat bed and minimizes damage to the faultyvehicle.
2. Flat – bed tow truck with a tail -board: Aretractable tail – board is addedat the rear. lt can reduce the slope between the flat bed and the ground,making it easier for the faulty vehicle to get onto the flat bed.
3. Flat – bed tow truck with a crane: A crane is installed, which can be usedto lift faulty vehicles that have fallen into ditches or rivers and are difficultto handle with the flat – bed towing method.
4. Flat – bed tow truck: lt is used to tow or carry faulty vehicles through theflat bed. The flat bed can be lifted and tilted through the hydraulic system, fRucfacilitating the vehicle to get on and off the flat bed.
SIMPLE TO OPERATE
1. Direct operating lever: The layout of the operating lever is ergonomic,with a comfortable grip and an appropriate stroke. lt can precisely controlthe action amplitude and avoid operationalimpact.
2. Wireless remote control: Operators can stay away from the dangerous operation area to avoid risks. They have a broader field ofvision, which is con-venient for observing operation details and improving operation accuracy.
PRODUCTION PROCESS
1. Preparation of sub – frame, gantry frame and tow arm materials
2. Preparation of flat – bed materials
3. Preparation and production of side guards, mudguards and accessorymaterials
4. Welding of flat – bed and gantry frame
5. Assembly of sub – frame, rear tow arm and accessories
6.Installation of the flat _bed superstructure
7. Painting of the entire vehicle
8. Completion of the vehicle production
APPLICATION SCENARIOS
PACKAGING AND TRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
