PRODUCT PARAMETERS

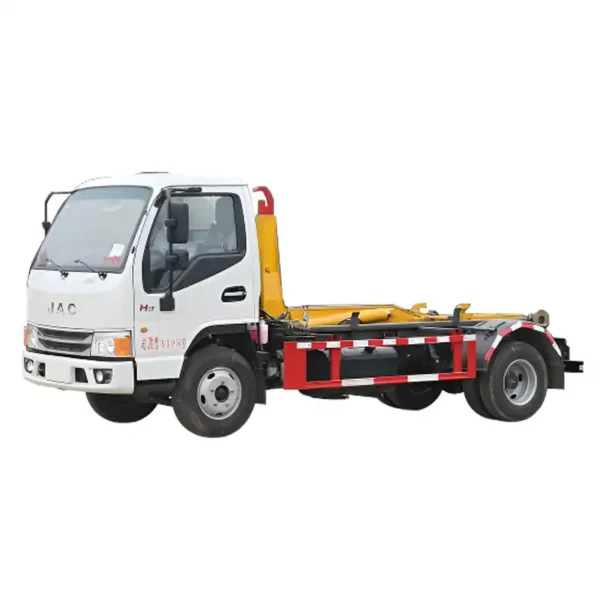

5m³ Hooklift JAC
| project | Descriptions | Specifications |
| General | Overall dimensions(mm) | 5325×1900×2240 |
| curb weight(Kg) | 3000 | |
| Loading capacity(Kg) | 1365 | |
| Total mass(Kg) | 4495 | |
| Superstructure | Lift Capacity（Tons） | 3-5 |
| Matching trash bin volume (m³) | 5 | |
| Hook arm material | Q40, Q50 high strength steel | |
| Chassis
|
Chassis brand | JAC |
| Driver form | 4*2 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 3365 | |
| Max engine power(Kw) | 85 | |
| Engine emission standard | Euro 6 | |
| Gearbox | 5-speed gearbox |
VEHICLE ADVANTAGES
HIGH-STRENGTH LOAD – BEARING CAPACITY
CORE COMPONENTS OF THE HOOK ARM
1. Hook – arm main body (main arm + telescopic arm + hook): Directlyhooks, tows and lifts the garbage bin. The telescopic arm can adapt to binsof different lengths.
2. Main oil cylinder: Provides hydraulic power for the rotation and exten-sion of the hook – arm, and controls the speed and force of the actions.
3. Locking mechanism: Locks the bin after hooking to prevent it from loos-ening during transportation; it is fixed in a linked manner during unloading.
4. Rollover frame: Connects the hook – arm and the auxiliary frame, enablesthe overall lifting and unloading, and withstands the overturning moment.
5. Auxiliary frame: Bears the hook – arm mechanism and the bin, and dis-tributes the weight to the chassis girder.
HYDRAULIC SYSTEM AND ASSEMBLY
1.Power take – off(PTO)
2. Hydraulic oil pump
3. Hydraulic oil tank
4. Main lifting cylinder
5. Built -in telescopic cylinder
6. Locking cylinder
7.Hydraulic multi – way valve
8.Hydraulic pressure gauge
9.Balance valve
10. Hydraulic oil pipe
SIMPLE AND INTELLIGENT TO OPERATE
1. Remote control: Enables single -person/remote operation.
2. Manual operating lever: Matched with the neutral return and safetyinter-lock design to ensure accurate and safe operation.
CONTAINER MATCHING
1.Household garbage bin
2.Mobile waste station
3.Construction waste bin
4.Sludge garbage bin
5.Tarp – covered garbage bin
6.Wing – opening garbage bin
PRODUCTIONPROCESS
1. Production blanking
2.Auxiliary frame manufacturing
3. Hook – arm main body assembly
4. Hydraulic component assembly
5. Auxiliary frame installation
6. Hook – arm mechanism and cylinder assembly
7.Completion of vehicle superstructure installation
APPLICATION SCENARIOS
PACKAGING ANDTRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
