PRODUCT PARAMETERS

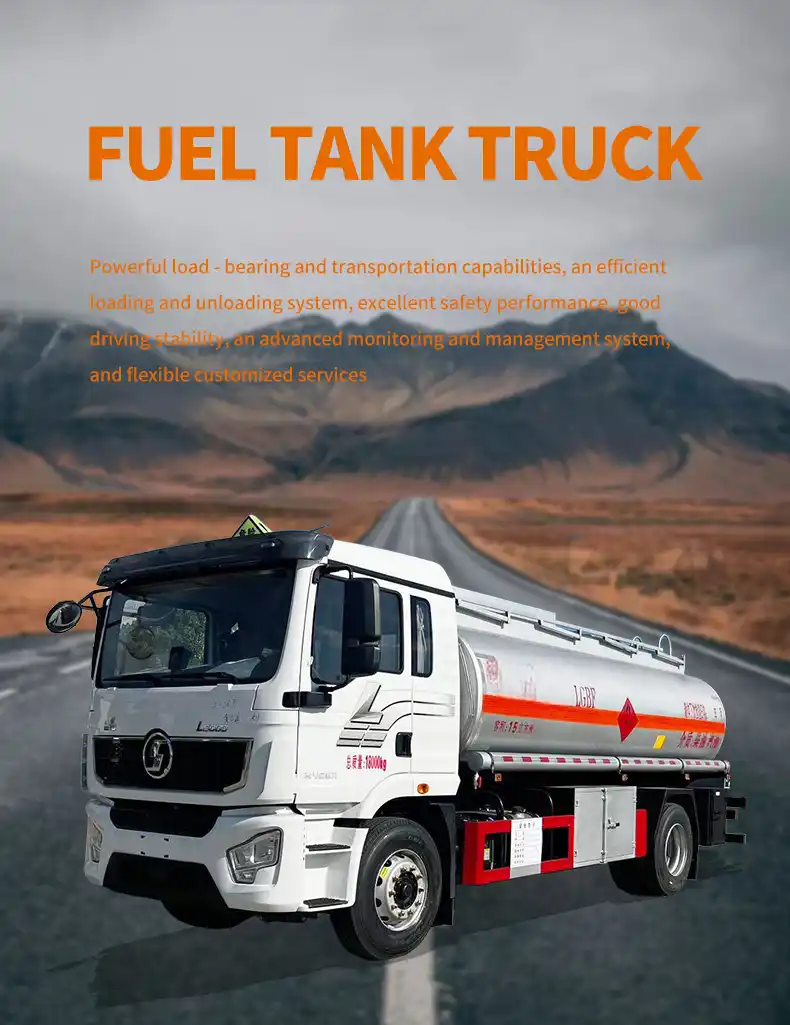

8500 L Fuel Tanker SHACMAN

VEHICLE ADVANTAGES

BOX MATERIAL AND DESIGN

1.High -strength steel: lt can withstand the pressure of theoil during transportation and possible external impacts.
2.Non – circular cross -section design: lt is less likely tobreak when subjected to external impacts and reduces thevehicle’s center of gravity.
3.Transverse corrugated partitions: They reduce the slosh-ing of the liquid during driving and prevent roll – over.Explosion – proof effect: They reduce the static electricity accumulation caused by the violent sloshing of the liquid.

CORE ACCESSORIES FOREXPLOSION-PROOFAND LEAKAGE- PROOF

1.European -standard filling port: lt has built -in breathingand emergency exhaust functions. lt can maintain the pres-sure balance inside and outside the tank, prevent oil waste,and release the pressure in the tank in case ofemergency.
2. Submarine valve: Also known as the emergency shut – offvalve, it is installed at the bottom of the tank and is used forbottom – loading oil. When an accident occurs to the oiltank, the vehicle pipeline and the tank will automaticallydisconnect.
3. Flame arrester: lt prevents external flames from intrudingor prevents the spread offlames between equipment andpipelines containing flammable and explosive gases.
4.Emergency shutdown system: lt can be operated manual-ly, automatically or remotely. When the vehicle overturns orthe pipeline breaks, it immediately cuts off the oil circuit toprevent leakage.
5.Anti – overflow probe rod and oil and gas recovery device:During the oil injection process, when the liquid level reach.es the set position, it will automatically alarm and stop oilinjection to prevent oil overflow.

ELECTRICAL EXPLOSION -PROOF SYSTEM

1. Static conductive tape
2. Static reel
3.Anti- static coating
4.Explosion – proofnylon oil pump

STANDARDIZED ACCESSORIES

1. Enhanced safety
2. High universality
3.Reduced maintenance costs
4.lmproved operational efficiency

Other details

1. APl valve: lt has built -in breathing and emergency ex-haust functions, which can maintain the pressure balanceinside and outside the tank, prevent oil waste, and releasethe pressure in the tank in case of emergency.
2. Donaldson fueling reel: lt provides double protectionagainst leakage and pollution, is anti – static and suitable forhazardous environments, and the automatic re – windingfeature saves labor and effort.
3.Integrated control panel: lt offers convenient operationand enhanced safety.
4. Liquid – level float gauge: lt accurately monitors the liquidlevel.
5.Anti – slip walkway: lt reduces the risk of slipping andcomprehensivelyensures the safety of personnel.

PRODUCTION PROCESS

1. Laser cutting: lt features high cutting precision, smoothcutting seams, and a fast cutting speed.
2.Mill processing: lt offers high rolling precision, uniformcurvature,ensures stable forming quality, and enhancesthe overall structural strength and sealing performance ofthe fuel tank.
3. Steel bar waveguide: lt reinforces the structurastrength, preventing the tank body from deforming andcracking due to jolts and liquid impacts, thus improving its
load – bearing capacity.
4.CNC automatic tank-body welding: lt has high weldingprecision, uniform welding formation, and a stable weld.
ing speed.
5.Tank – body completion: This ensures the quality of weldseams and prevents cracks or leaks.
6.Chassis structure adjustment: Adjust the chassis struc.ture according to the size and weight of the oil tank.
7. Mounting the tank body onto the chassis: Apply multi -layer corrosion -resistant and wear -resistant coatings toenhance the protective performance and safeguard thestorage tank and vehicle body.
8.Completion of vehicle up -fitting: After assembly, comprehensive tests such as sealingtests, strength tests,safety device tests, and road tests should be carried out to ensure the safety and reliability of the oil tanker.

APPLICATION SCENARIOS

PACKAGING AND TRANSPORTATION
