PRODUCT PARAMETERS

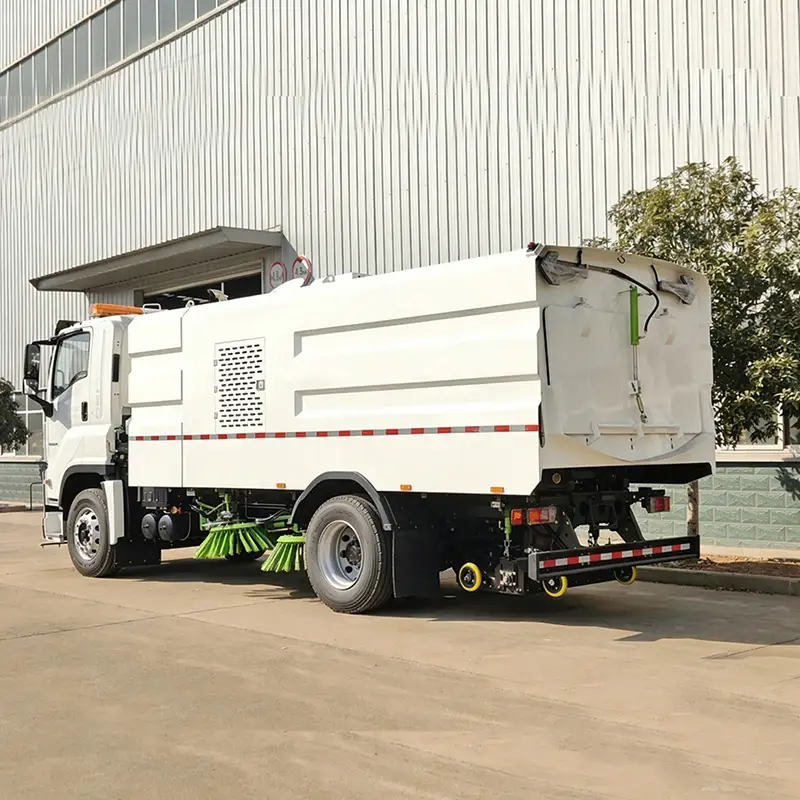

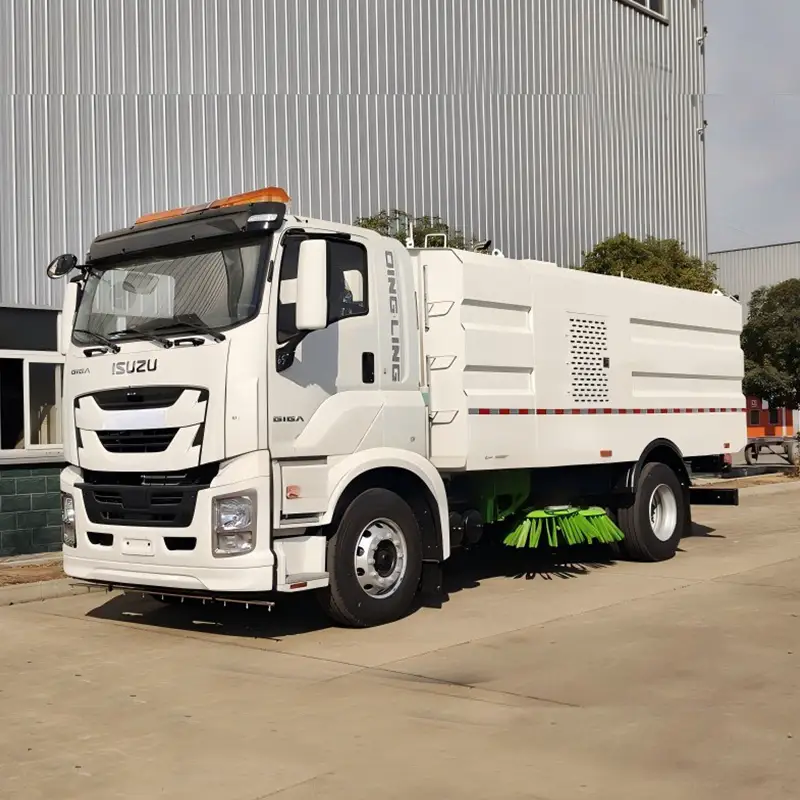

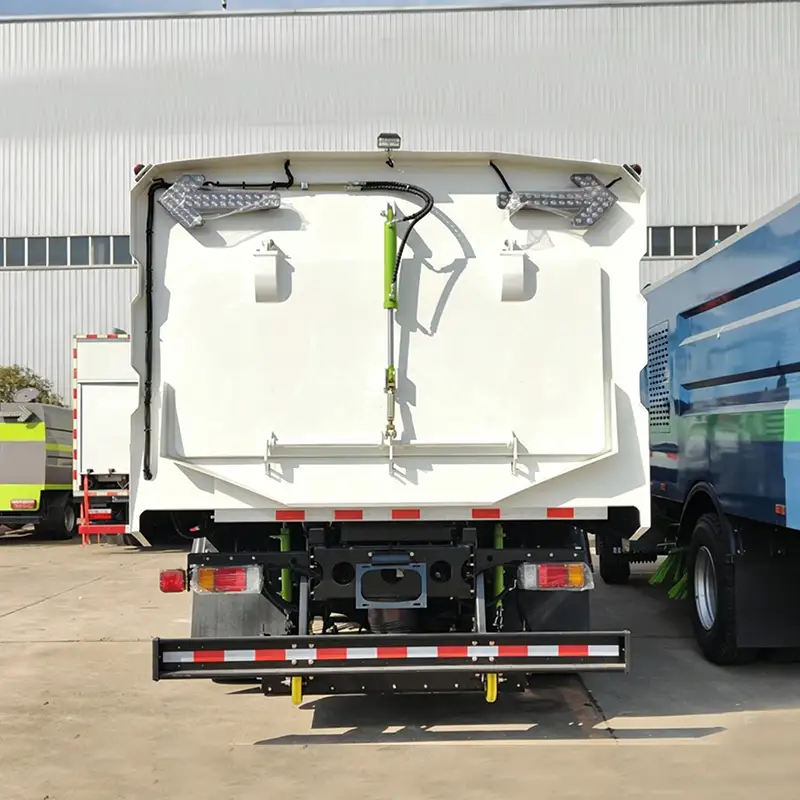

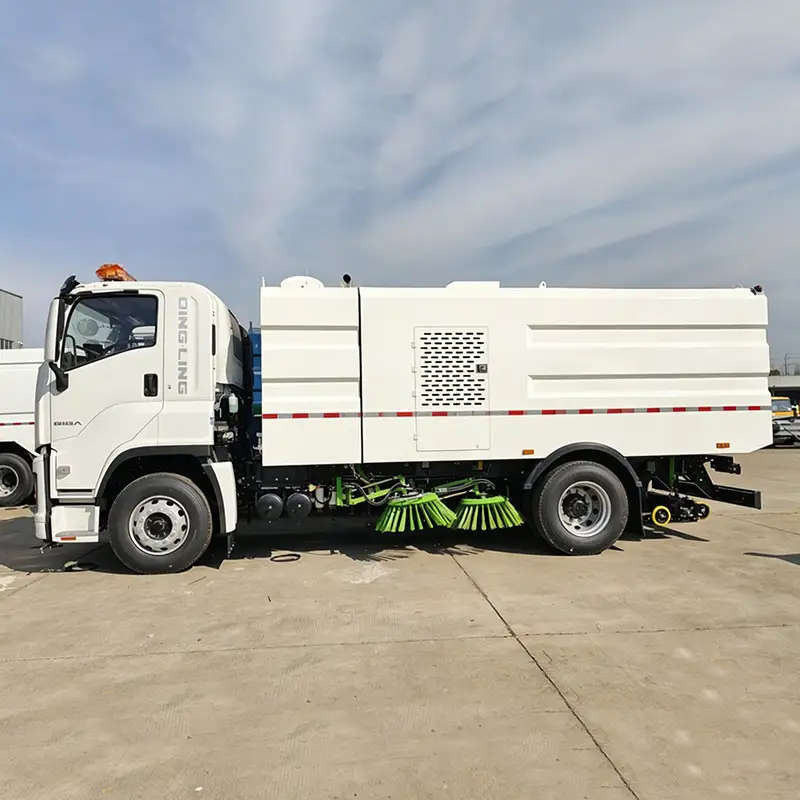

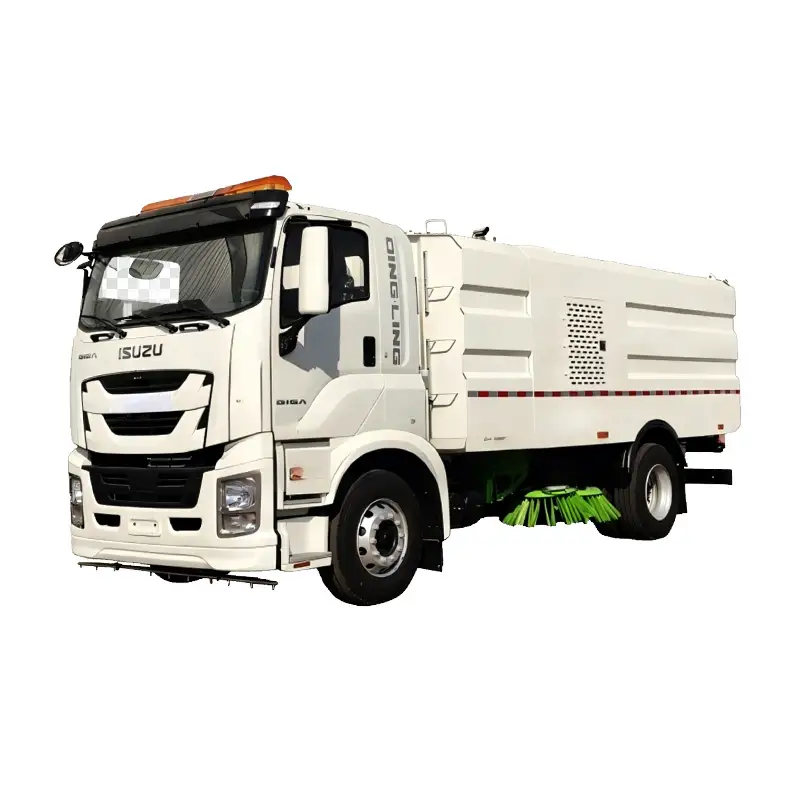

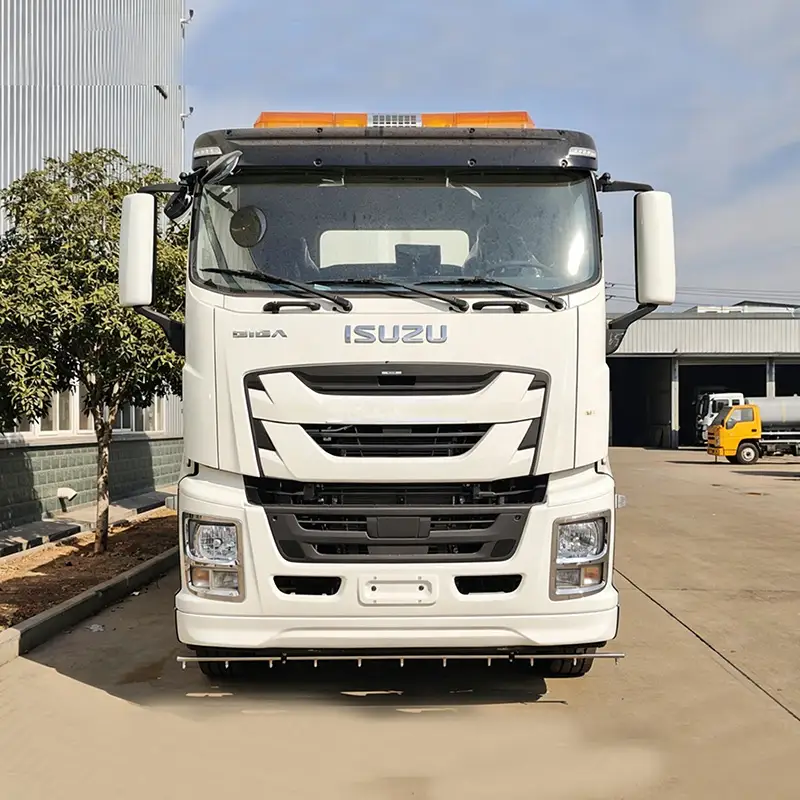

ISUZU 12m³ Sweeper truck
| project | Descriptions | Specifications |
| Basic | Overall dimensions(mm) | 8000*2500*3120 |
| curb weight(Kg) | 9080 | |
| Loading capacity(Kg) | 8790 | |
| Total mass(Kg) | 18000 | |
| Body | Auxiliary engine power（Kw） | 154 |
| Garbage bin volume (m³) | 8（stainless steel） | |
| Clear water tank volume (m³) | 4（carbon steel） | |
| Chassis
|
Chassis brand | ISUZU |
| Drive form | 4*2 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 4500 | |
| Engine brand and model | 4HK1-TCG60 | |
| Max engine power(Kw) | 151 | |
| Engine emission standard | Euro 6 | |
| Fuel type | Diesel | |
| Gearbox | 6-Speed Manual |
VEHICLE ADVANTAGES
SELECTION OF BOX VOLUME
STRINGENT MATERIAL SELECTION
Rectangular corrugated structure made of stainless steeElectrical components
Auxiliary engine
High -pressure water pumpHydraulic components
Special high -efficiency fan
PROFESSIONAL DESIGN
1. Dual – tank split design: The clean water tank and the garbage bin arearranged separately.
2.Sewage discharge device: During the operation, sewage can be dis-charged through the sewage discharge device.
3. Dual -cylinder configuration: The garbage bin uses a dual – cylinder self.unloading system for discharging.
4. High – pressure water spraying device: Meanwhile, a high – flow high -pressure water spraying system is installed in the bin, which can quicklywash away the garbage.
ONE VEHICLE WITH MULTIPLE FUNCTIONS
Road sweeping
forward flushing
side spraying
front mist spraying
rear mist spraying
It is equipped with a high – pressure water gun, which can clean the deadcorners of road hygiene, “psoriasis” (illegal small advertisements) and thevehicle itself.
The operation structure is arranged with “two centrally- positionedsweeping discs + a centrally-positioned wide suction nozzle + an internal-ly-installed high -pressure main spray bar + left and right high – pressureside spray bars”
SAFE,INTELLIGENT AND EASY TO OPERATE
1.intelligent screen lCAN bus
2.Intelligent indication of water tank status
3.Water shortage sensor
4.Rear -view monitoring system
PRODUCTION PROCESS
1. Product drawing design
2.Material preparation
3. Box body manufacturing
4. Component installation
5.Vehicle assembly
6. Truck testing7.Product inspection
APPLICATION SCENARIOS
PACKAGING AND TRANSPORTATION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
