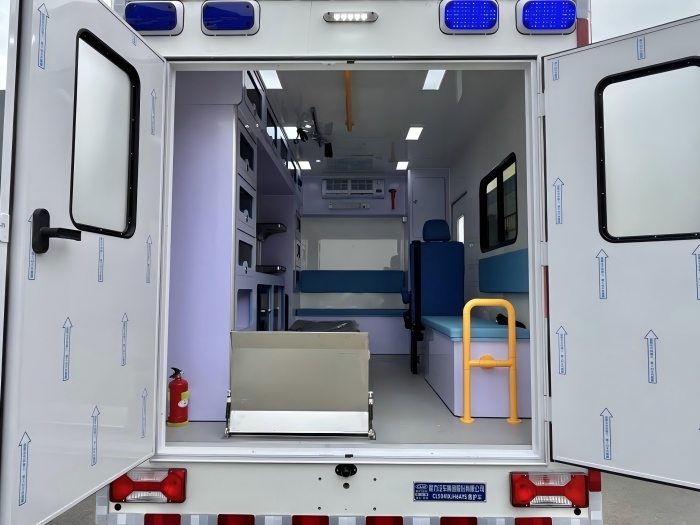

Iveco 4X4 Ambulance
| Product Name | Iveco 4X4 ambulance |
| Drive Type | 4×4 (Full-Time All-Wheel Drive) |
| Cruiser Capacity | 7 (Including Stretchers) |
| External Dimensions (Length × Width × Height)(mm) | 5995 × 2100 × 2870 |
| Wheelbase(mm) | 3365 |
| Front/Rear Overhang(mm) | 940 /1645 |
| Front Track/Rear Track(mm) | 1670 /1670 |
| Approach/Departure Angles | 37°/17 |
| Gross Vehicle Weight(kg) | 4490 |
| Curb Weight(kg) | 3950 |
| Fuel Tank Capacity(L) | 110 |
| Front/Rear Axle Load (Full)(kg) | 1860 /2630 |
| Rated Power (kW)/Displacement (mL)(Kg) | 132/2798 |
| Maximum Torque (N•m/rpm) | 430/1400-2800 N•m/rpm |
| Maximum Speed (km/h) | 140 |
| Minimum Steady Speed (km/h) | 2.5 |
| Maximum Gradeability | 60% |
| Minimum Ground Clearance（mm） | 215 |
| Minimum turning diameter (m) | 14 |
| Longitudinal breakover angle (°) | 20 |
| Mount clearance width (mm) | 650 |
| Vertical obstacle clearance height (mm) | 280 |
| Wading depth (mm) | 850 |
| Engine | F1CE8481M |
| Transmission | Six-speed manual |
| Transfer case | Full-time four-wheel drive, electronic shifting, chain drive |
| Tires | 265/75R16LT 10PR |
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
