Refrigerator Semi Trailer
PRODUCT PARAMETERS
Refrigerator Semi Trailer
| Descriptions | Specifications |
| Overall dimensions(mm) | 13740*2600*2770 |
| curb weight(Kg) | 8400 |
| Loading capacity(Kg) | 31600 |
| Total mass(Kg) | 40000 |
| Cargo box size (mm) | 13478*2460*2471 |
| Box volume (m³) | 81.9 |
| Box material | Aluminum Plate |
| Insulation layer material | polyurethane |
| Insulation layer thickness(cm) | 8 |
| Box bottom plate | aluminum material Ventilation trough |
| Refrigerator brand | Carrier |
| Refrigerator temperature (°) | -5°/-18° |
| Backup power | Optional |
| Air heating system | Optional |
BOX SIZE MODELS
1. Standard refrigerated box body 2. Ventilation trough refrigerated box body 3. Meat hook rail refrigerated box body 4. Meat hook single – track ventilation trough box body 5. Meat hook multi – track ventilation trough box body 6. All – stainless -steel refrigerated box body 7.Meat hook ventilation trough stainless -steel refrigeratedbox body 8. Live fish transport vehicle refrigerated box body 9. Shelf – type refrigerated box body 10. Chick temperature – controlled refrigerated box body 11.Compartment – separated dual-temperature refrigerat.ed box body
CHILLER CONFIGURATION

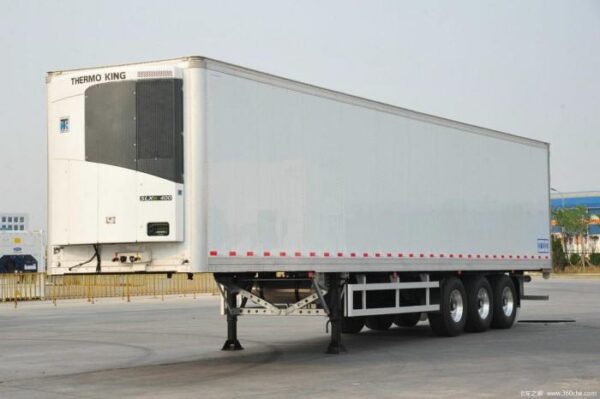

THERMO KING Independent power supplyLowfuel consumption, strongcoolingEasy operation and convenient maintenance CARRIER Independent refrigeration units.driven by a built-in engine,withefficient condenser heat exchangecopper pipes andcompressors,improve unit efficiency and reducefuel con-sumption, transport dif.ferent goods, and have a moretho.rough defrosting, function.
THERMALINSULATION MATERIAL
The high – density polyurethane: weighs 42 kilograms per cubic meter. The high – density polystyrene : weighs 38 kilograms per cubic meter.
DETAILS OF DOOR FRAME SEALING
Five sealing strips Customized thermal break insulation rubber strip
OTHER DETAILS
Stainless steel hinge seat Welding details of lock components Fully welded aluminum alloy ventilation slot
PRODUCTION PROCESS
1.Inner Frame – work Production of the Box Body 2. Panel Production of the Box Body 3. Pre – positioning of the Box Body Floor Installation 4.Install stainless – steel box panels 5. Assembly of the Truck Body Panels 6. Completion of the Box Body 7. Assembly of Box Body Parts 8.Installation on the Chassis

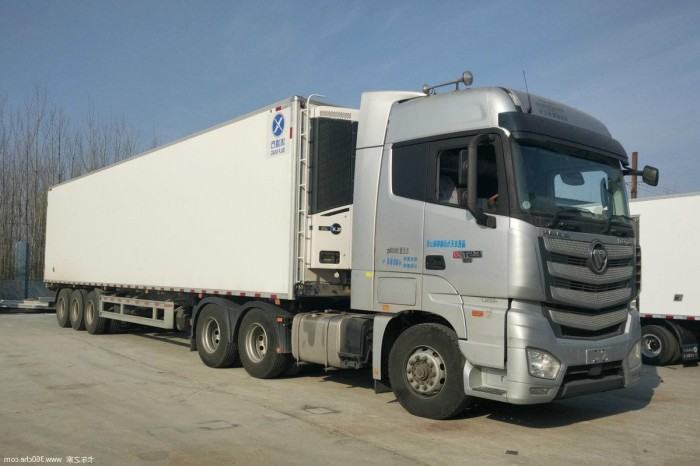

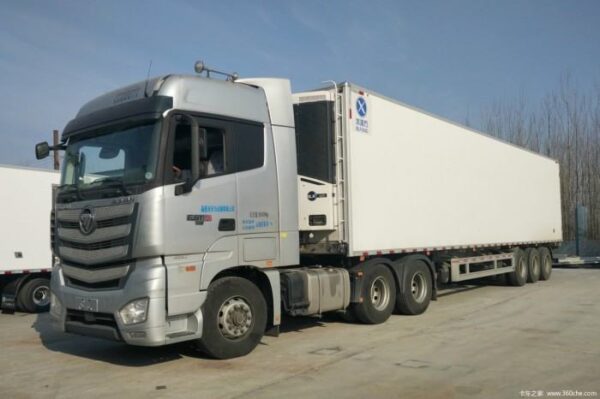

APPLICATION SCENARIOS
PACKAGING AND TRANSPORTAION
After-sales and service
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
Delivery Time
We do our best to ensure that orders are ready for dispatch within 24 working days (after payment is received)
Delivery areas
Whether you are in a bustling city or a quiet island, our global logistics network can seamlessly reach any sovereign country and region in the world.
