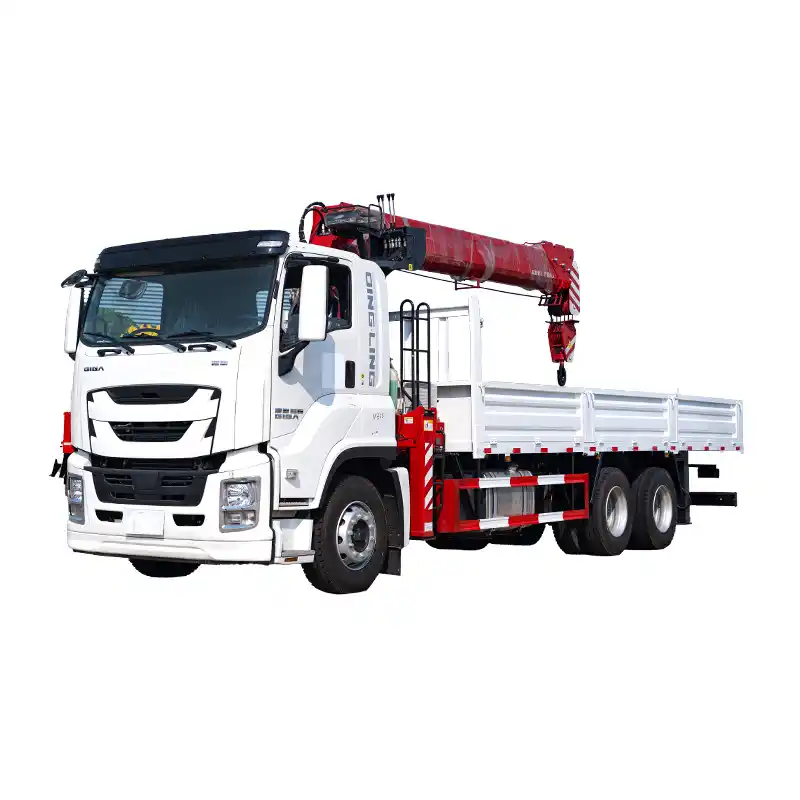

12-Ton Stiff Boom Crane ISUZU
PRODUCT PARAMETERS
12-Ton Stiff Boom Crane ISUZU
| project | Descriptions | Specifications |
| Basic | Overall dimensions(mm) | 9700×2600×3830 |
| curb weight(Kg) | 16840 | |
| Loading capacity(Kg) | 8590 | |
| Total mass(Kg) | 25000 | |
| Body | Cargo box size（mm） | 6500x2450x550 |
| Maximum lifting weight (kg) | 12000 | |
| Working radius (m) | 14.5 | |
| Lifting height (m) | 16.5 | |
| Chassis
|
Chassis brand | ISUZU |
| Drive form | 6*4 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 4600+1370 | |
| Engine brand and model | 6UZ1-TCG61 | |
| Max engine power(Kw) | 279/380HP | |
| Gearbox | FAST,8 speed forward 1 reverse |
