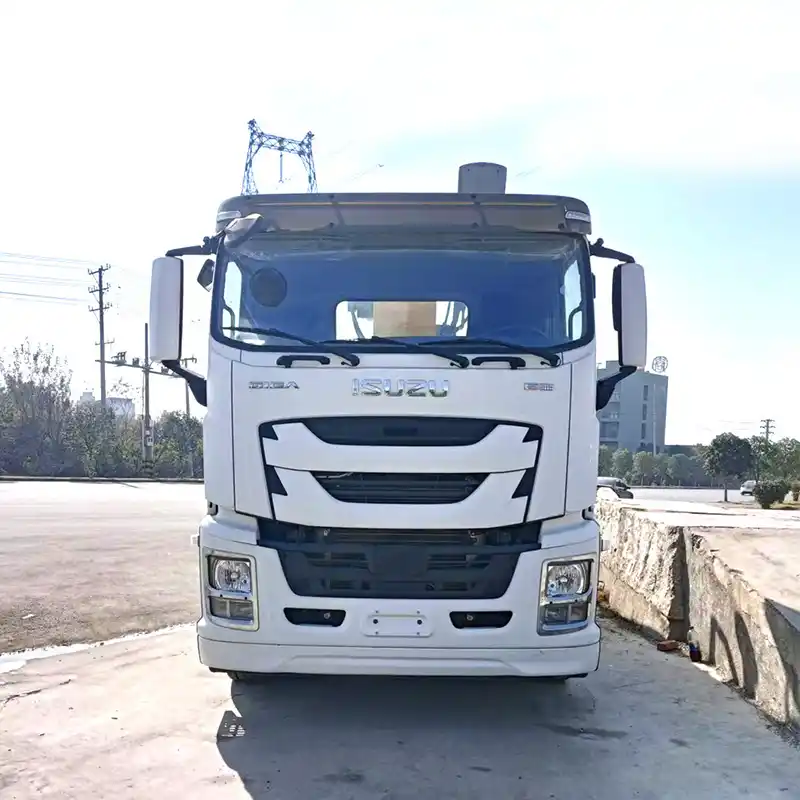

16-Ton Stiff Boom Crane ISUZU
PRODUCT PARAMETERS
16-Ton Stiff Boom Crane ISUZU
| project | Descriptions | Specifications |
| Basic | Overall dimensions(mm) | 11980×2500×3980 |
| curb weight(Kg) | 18500 | |
| Loading capacity(Kg) | 12500 | |
| Total mass(Kg) | 31000 | |
| Body | Cargo box size（mm） | 7000x2350x550 |
| Maximum lifting weight (kg) | 16000 | |
| Working radius (m) | 20 | |
| Lifting height (m) | 22.5 | |
| Chassis
|
Chassis brand | ISUZU |
| Drive form | 8*4 | |
| Steering wheel | Left hand drive | |
| Wheelbase(mm) | 2100+4325+1370 | |
| Engine brand and model | 6WG1-TCG62 | |
| Max engine power(Kw) | 380/520HP | |
| Gearbox | FAST,12speed forward 2reverse |
